Chasing M2 PRO - Professional Pack

About this product

Due to shipping restrictions, we are not currently able to send this item to locations outside of the UK. Specialist shipping is also required so additional postage costs will apply. We will be in contact once you have placed your order to confirm these costs with you, or,  if you wish to discuss this before your order, please contact us on 01803 865913 or by email at customer.services@nhbs.com.

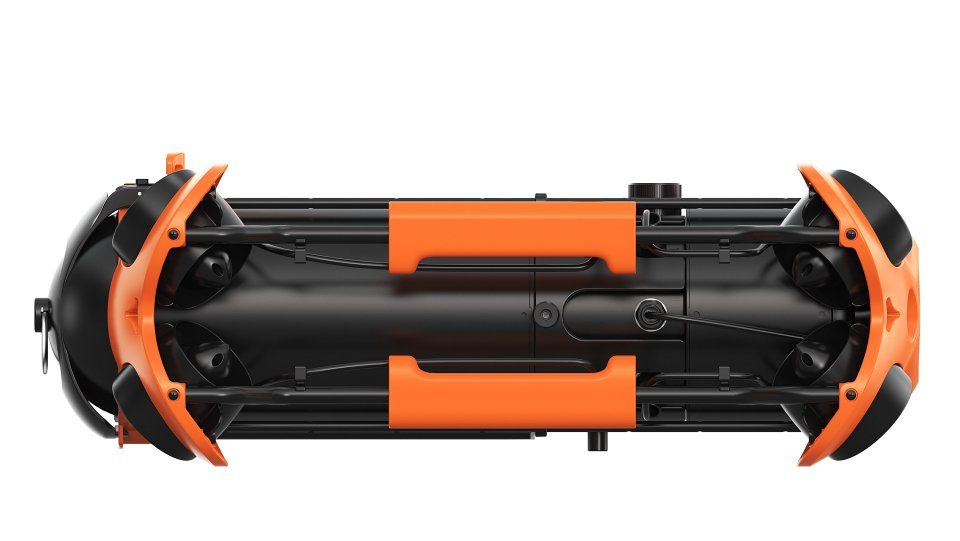

The Chasing M2 Pro is a powerful, industrial-grade drone option for those who wish to take their underwater exploration and survey to the next level. This Remotely Operated Underwater Vehicle or ROUV greatly enhances your capabilities to survey unobtrusively and respectfully in and around the environments and wildlife that you may be operating. With a quick deployment time, the drone requires little preparation and can be operated by one individual due to its small form factor and weight, reducing the amount of staff needed for survey. Both increasing output and reducing costs.

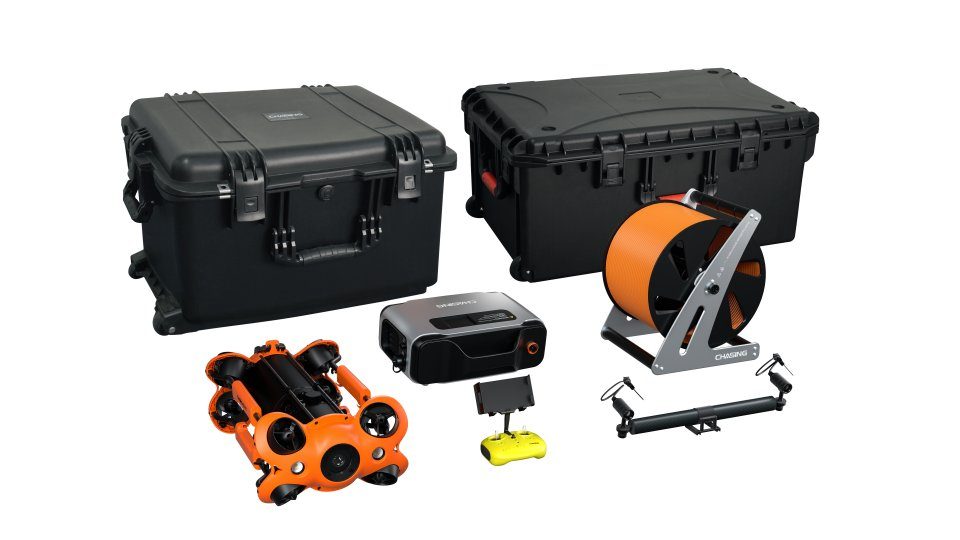

This Professional package contains the drone, controller dock, 128Gb storage, carrying case, Floodlight 2.0 and shorebase power supply system (200m).

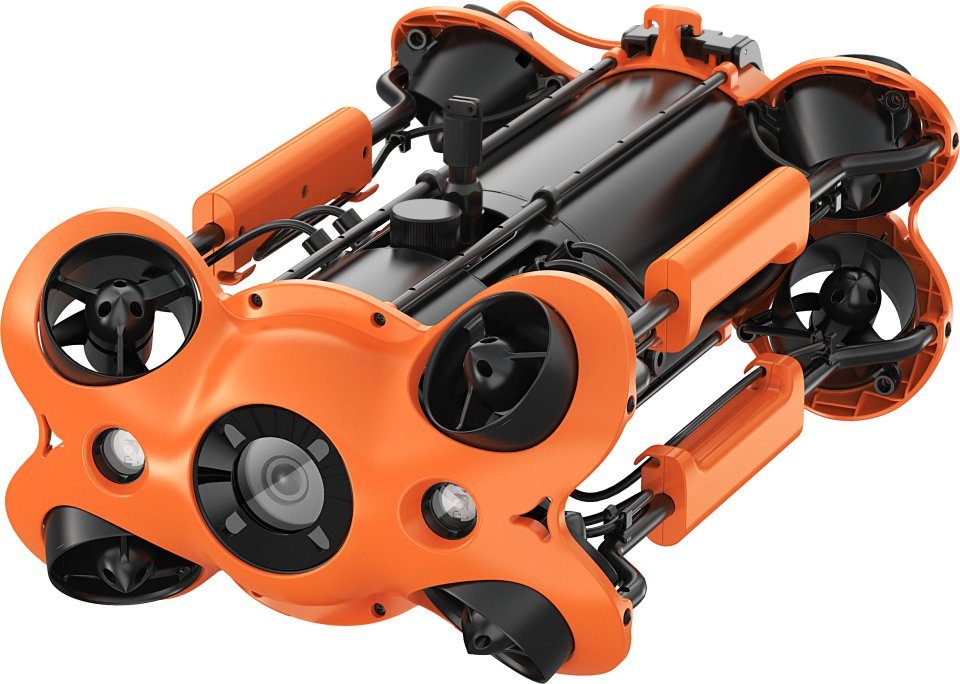

The drone is equipped with 8 omnidirectional thrusters facilitating 360° movement. Depth can be simply set with one button allowing the drone to accurately hover for steady filming and observation. The upgraded 150W motor comes with patented 'Anti-stuck' technology to propel the unit through the water at a maximum speed of 4kts.  Controlled by a tethered RC3 control unit which is run through a tablet or phone of your choosing, there is no risk of losing connection. A visual survey is conducted through a 4K + EIS image stabilised camera with a 1/2.3" SONY CMOS sensor paired with an F2.8 lens. This can provide a max 4K video resolution with a 12MP max stills photo resolution. The camera has 150° FOV and is flanked by two 2000 Lm lights, providing excellent visibility in low light conditions and with a colour rendering index of 85, helping show images in their true colours deep underwater. Lights can be dimmed by 3 steps from the control console. This is complemented by the addition of the Chasing Floodlight 2.0 which adds two additional points of 2000lm illumination.

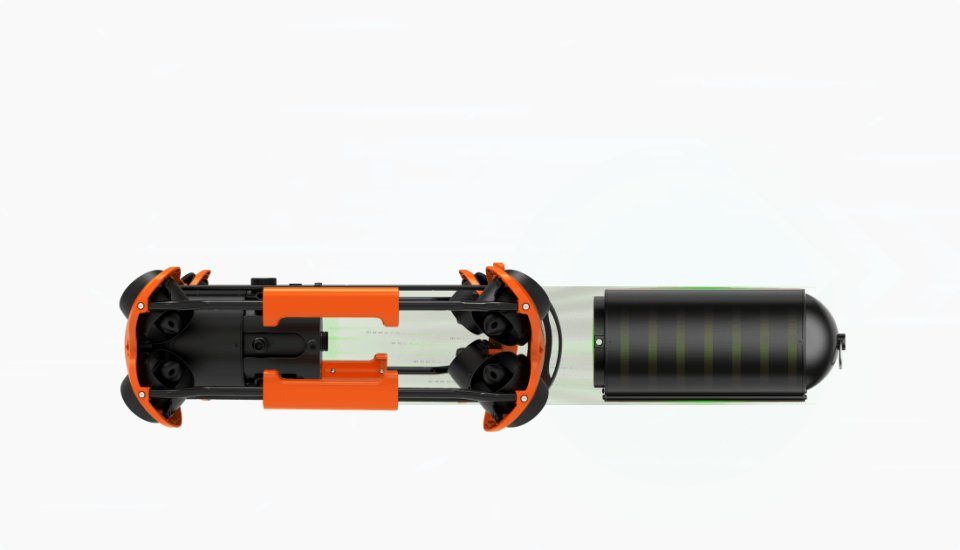

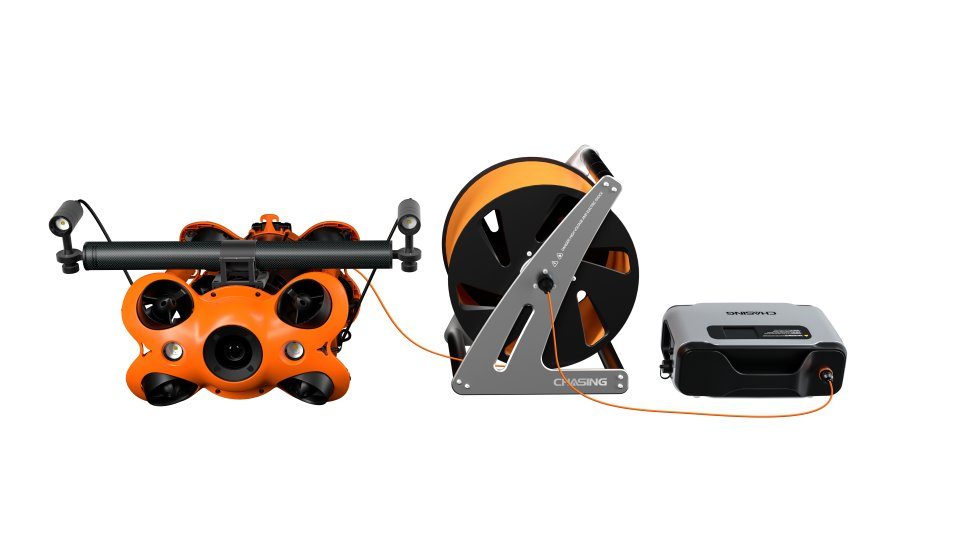

The control app provides a real-time video feed for you to control your drone and real-time environmental data so that you can conduct surveys in ideal conditions.  All of this is powered by the included Chasing Shorebase Power Supply System 200m (C-SPSS). This powerful 1,500W power supply system can power the drone and 5 accessories at the same time, offering 24/7 operation. Featuring a simple plug-and-play design, the power cable is connected to the Drone Side Power Supply Interface, which is easily installed in the ROV's battery cabin. The C-SPSS comes with a 200m power cable ensuring unrestricted operation during surveys.Thanks to the included trolley case, the C-SPSS can easily transported and stored. The working depth of the M2 PRO has been upgraded to 150m, ideal for exploring deeper waters.

The drone can be adapted for any situation with the addition of optional modules (please see accessories). These include a grabber claw, distance-locking sonar, for control in confined spaces, laser scaler, underwater LED video light and Go Pro mounting points.

Warranty: Minimum 1 year (individual components may have longer warranties, please contact us for more information)

Contents

• M2 pro Drone ×1
• RC3 Remote Controller x1
• Shorebase Power Supply System x 1
• Chasing Floodlight 2.0 x 1
• Go pro Mounting Base x1
• PowerCord & 3 in1Charger x1
• Carrying Case ×1
• M3 X 8 Screws ×4
• Support Documents x4
• O-rings ×18
• Towel ×1
• Data cable x3
• Sun Shade x1

Specification

ROV

• Dimensions: 480 x 267 x 165 mm
• Weight: 5.7 Kg
• Max depth: 150 m
• Runtime: 4 Hours
• Operating temperature: -10°C ~ 45°C
• Max load bearing(X,Y,Z): 3.9, 3.2, 3 Kg

Remote Controller

• Size: 160 x 155 x 125 mm
• Weight: 685 g
• Battery: 2,500 mAh
• Runtime: ≥6 Hrs (depending on the environment)
• Wireless: Wi-Fi Supported
• HDMI: Supported
• Wired Port Type: Lightning, Micro-USB, USB-C
• Handle spring maximum device support size: 10"

Camera

• CMOS: 1/2.3
• Lens: F2.8
• Focal range: 0.3m ~∞
• ISO Range: 100 - 6400 ISO
• Field of view (FOV): 150°
• Max resolution: 12 MP
• File Format: JPEG/DNG
• Video: FHD 1920 x 1080 (1080p) 25/30/50/60/100/120fps / 4K 3840 x 2160 @ 25/30fps
• Slow motion:  4X (1920 x 1080p @ 120fps) / 8X (1280 x 720p @ 240fps)
• Time Lapse: 4K/1080p supported
• Video stream: 60M
• Video File Format: .MP4
• SD Card: 128G

LED

• Brightness: 2 x 2000 Lumens
• Colour temperature: 5,000K - 5,500K
• CRI: 85
• Dimming: Three-step

Sensors

• IMU: Axis gyro/ Accelerometer/ compass
• Depth: <±0.25m
• Temperature sensor: <±2°C

Charger

• Power: 2.9A/25.2V
• ROV charging time: 2.5 Hr
• Remote Control Charging time: 2 Hr

Floodlight:

• Dimension: 41.8 cm
• Weight: ~ 432 g
• Angle of depression: -10°
• Horizontal Angle: 360° omnidirectional
• Pressure rating: 150 m depth
• Brightness: 2 x 2000 lm
• Materials: Aluminium, Carbon fiber

Power Supply Box

• Dimensions: 230 x 315 x 118 mm
• Weight: 3.9 Kg
• IP Rating: IP21
• Operating temperature: -10°C ~ 50°C
• Moisture: 5-95% RH, no condensation
• LCD Screen Type: Resistive touch screen
• LCD Screen Resolution: 320 x 240
• LCD Screen Size: 2.8 inch
• Network Port Rate: 10/100Mbps
• Input Parameter: 100-125VAC 50/60HZ, 15A MAX   200-240VAC 50/60HZ, 10A MAX
• HV Port Output Parameter:  490VDC, 2000W MAX@220V~    490VDC, 1500W MAX@110V~
• RC Port Output Parameter: 24VDC, 50W MAX
• Efficiency: ≥92%

High Voltage Tether Cable

• Diameter: Ø 7.2 mm
• Length: 200 m
• Weight: 35 g/m
• Operating temperature: -10°C ~ 50°C
• Tensile Capacity: 250kgf
• Tether: +5 - 10g (in fresh water)
• Wire Gauge: 27awg (yellow & white) 20awg (red & black)

High Voltage Reel

• Size: 321 x 380 x 342 mm
• Weight: 4.4 kg
• IP Rating: IP54
• Operating temperature: -10°C ~ 50°C
• Input/Output Parameter:  490VDC, 4.1A MAX

Drone-Side Power Supply Interface

• Size: Ø 120 x 360 mm
• Weight: 2.7 kg
• IP Rating: IP68, 200 m withstand voltage
• Operating temperature: -10°C ~ 50°C
• Input Parameter:  490VDC, 3.3A MAX
• Output Parameter: 24VDC, 60A MAX
• Efficiency: ≥93%
