Chasing WSRC (Waterproof Screen-touch Remote Control)

About this product

Due to shipping restrictions, we are not currently able to send this item to locations outside of the UK. Specialist shipping is also required so additional postage costs will apply. We will be in contact once you have placed your order to confirm these costs with you, or,  if you wish to discuss this before your order, please contact us on 01803 865913 or by email at customer.services@nhbs.com.

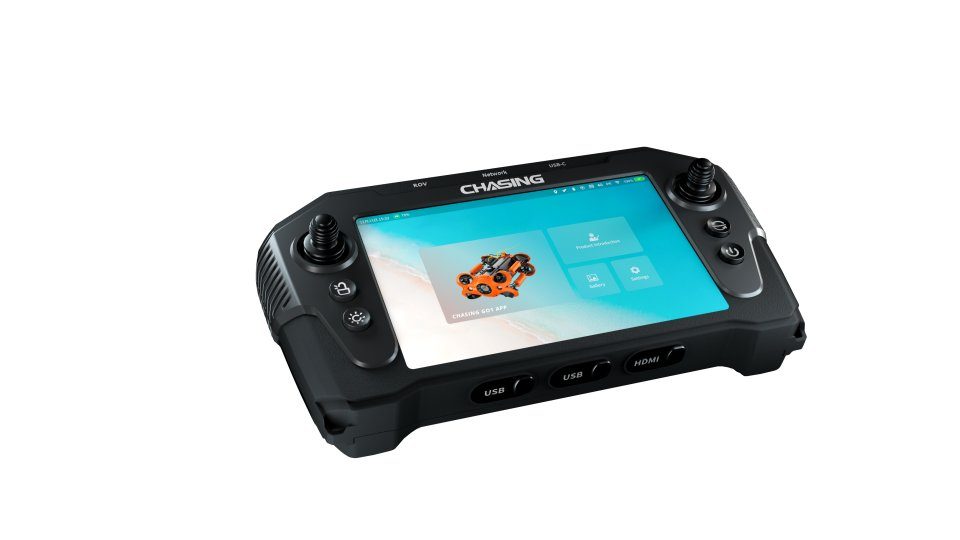

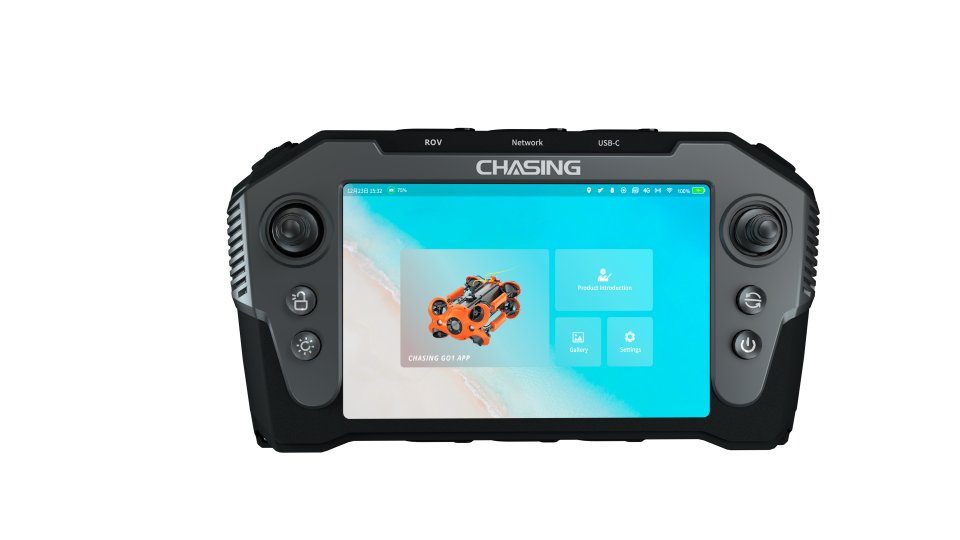

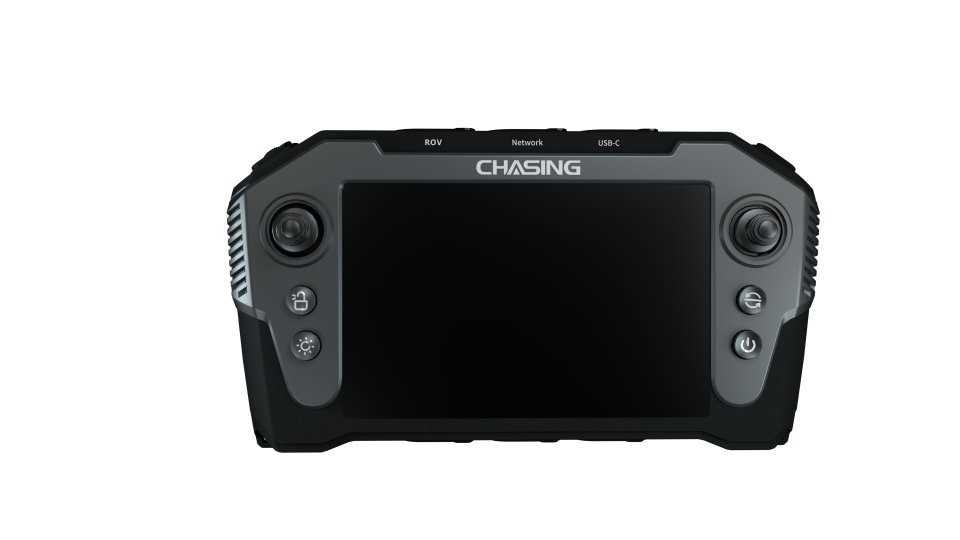

The Chasing WSRC Waterproof Screen-touch Remote Control offers an inbuilt touchscreen for viewing high-definition footage from your Chasing M2 PRO or M2 PRO MAX. With a 7-inch screen, maximum 700nit brightness and light shield, images are bright and clear, even in direct sunlight.

Featuring a 5-point industrial touch design alongside simple shortcut keys this controller offers the user an easy but high-performance control experience. The controller features 6 shortcut keys which can be used for power, adjusting floodlight brightness, switching between photo/video mode and a variety of other actions. The horizontal and vertical movement of the ROV can be easily operated by the left and right control sticks, offering 360° directionality. Pitching and rolling angle can also be controlled using the right and left levers located at the top of the controller. An optional grabber claw can be operated using the rear lever and the return key.

In addition to the ROV connection and USB-C charging port this controller comes equipped with 4 other commonly used ports. The HDMI port allows for a simple connection to an external display. The remaining ports facilitate 3 different network connection methods. The two USB ports can be used for an external 4G network card for data transmission. The network port, located on top of the controller can be used to establish a wired network connection. The controller also comes with two Wi-Fi frequency bands to ensure a stable and reliable connection. Through the pre-installed CHASING GO 1 APP underwater footage can be live-streamed and locally saved content can be sent via E-mail, social networks and work software. The controller can also be used as a tablet i.e. listening to music, watching movies, etc.

Featuring a built-in 7000mAh battery with a battery life of ≥4h alongside, an intelligent energy-saving mode this controller is built for long deployments.

Designed for outdoor use, this controller has an IP65 rating offering protection against moderate rain and sea splash. With an operating temperature of -10℃ - 55℃ it can be operated even in harsh conditions. In case of extreme conditions, this controller is equipped with a high-temperature warning interface.

Please click HERE for the manual

Warranty: 2 years

Contents

• Remote controller

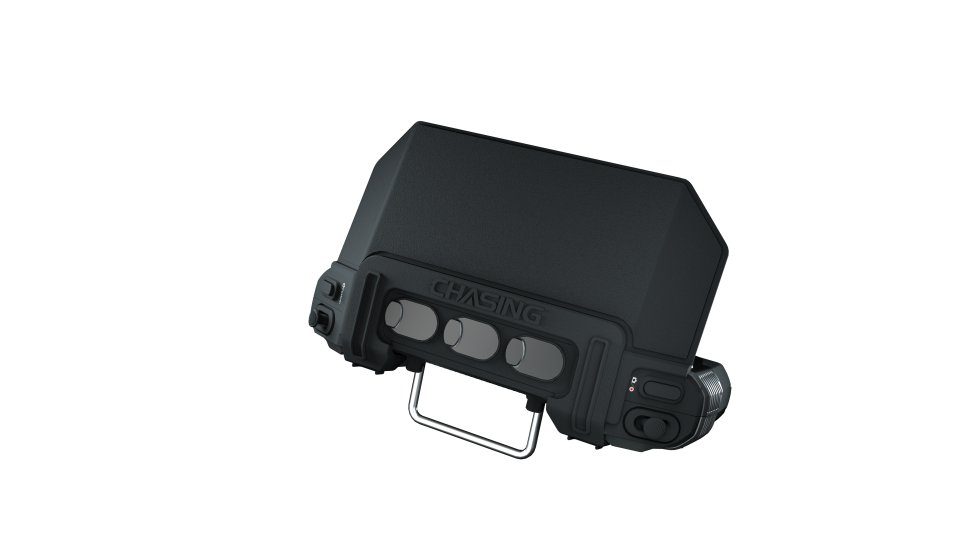

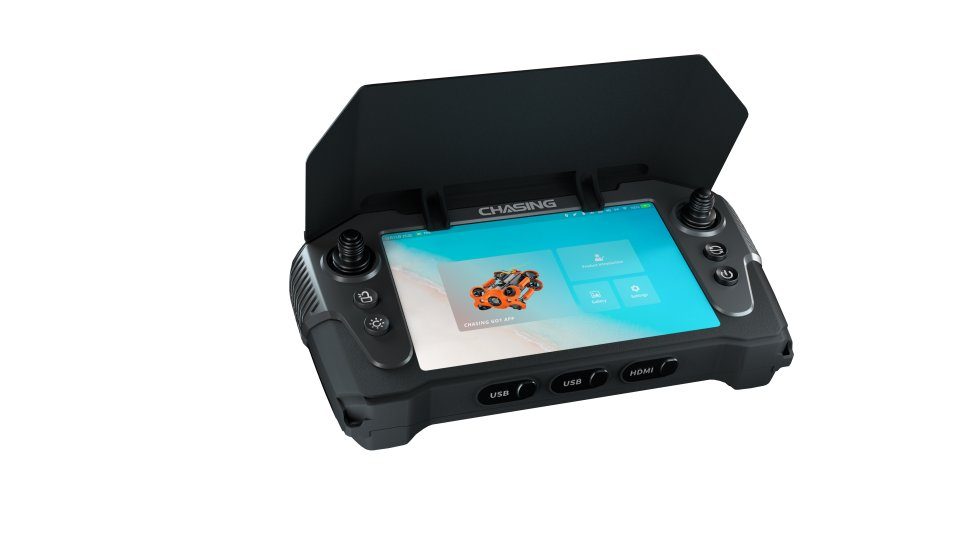

• Light shield for remote controller
• USB-C to USB-C connector data cable
• USB-A to USB-C connector data cable
• HDMI socket cover
• Network interface socket cover
• ROV socket cover
• USB socket cover
• Document package

Specification

General

• Dimensions: 292×156×79mm (without light shield)
• Weight: 1.3kg
• Display: 7.02 inches, 700cd/m², 1920×1200
• Touch Screen: 5-point industrial touch
• I/O interface: 2 x USB2.0, Ethernet port, Type-C, HDMI, ROV port
• Remote-control Levers: 3 x single-shaft levers, 2 x dual-shaft hall control stick
• Remote-control Keys: 6 x control buttons

Performance Parameters

• CPU: Quad-core 64-bit Cortex-A55 with a dominant frequency of 2.0GHz
• GPU: ARM G52 2EE
  GPU Hardware: Built-in high-performance 2D acceleration hardware
• Supported API: OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
• Supports 4K 60fps H.265/H.264/VP9 video decoding:  Yes
• Supports 1080P 60fps H.265/H.264 video decoding: Yes
• Operating System: Android 11
• Running Memory: 4G
• Storage Capacity: 32G

Battery

• Capacity: 7000mA, 11.1V
• Type: Non-removable lithium battery
• Battery Life: ≥4h
• Charging Time: ≈3.5h

Wireless Communication

• WiFi Frequency: 2.4GHZ/5.8GHZ
• Bluetooth: Bluetooth 4.2
• Support External Mobile Network Card: Yes
• Satellite Positioning: GPS, BeiDou

Environmental Characteristics

• Waterproofing: IP65
• Operating Temperature Range: -10℃ - 55℃
  Operating Humidity Range: 5% - 95 RH, non-condensing
