Chasing distance lock sonar

About this product

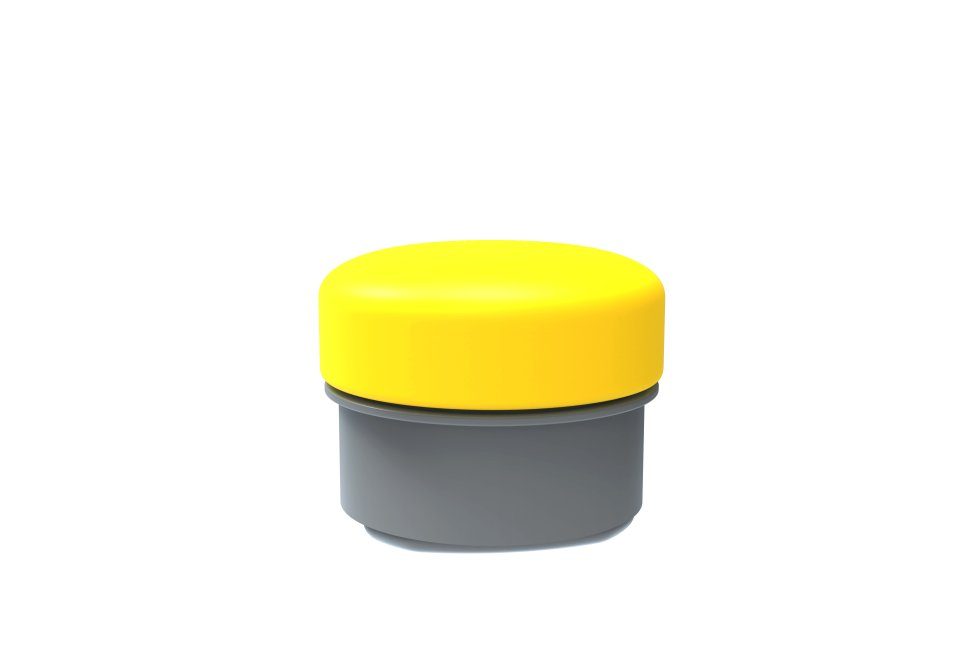

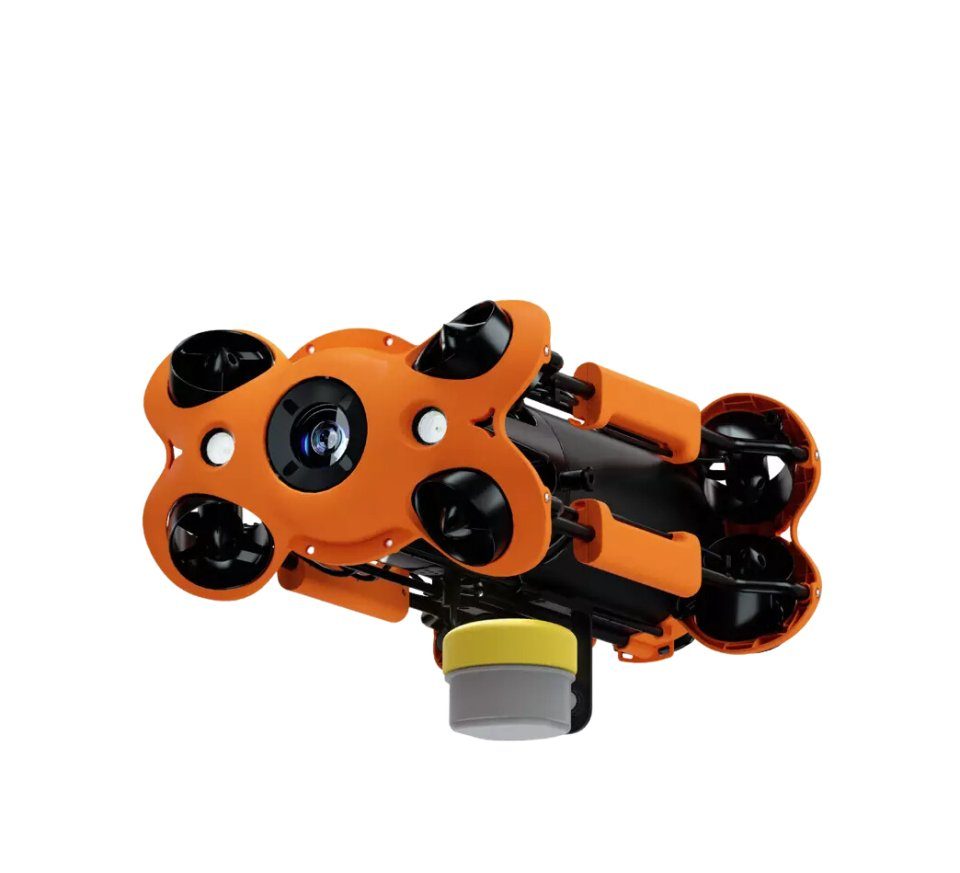

The distance lock sonar from Chasing enables your drones to maintain a distance from objects in their surrounding environment or restrict the drift of the unit to a defined distance from its current location. This makes the sonar unit ideal for use in inspection around delicate ecosystems or objects such as for hull inspection for boats or dockside surveys. The sonar will detect objects directly below and in a radius around the unit but not above the unit. The sonar mounts directly below the drone and is compatible with both the M2 S and the M2 PRO.

Please click HERE to see the manual

Warranty: 2 years

Contents

• 1 x Distance lock sonar

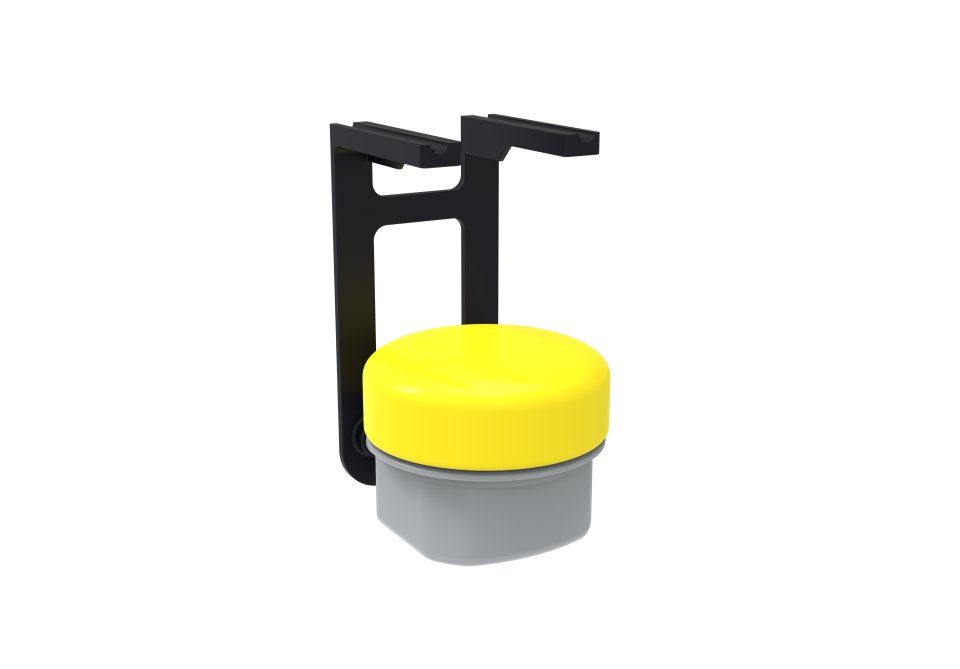

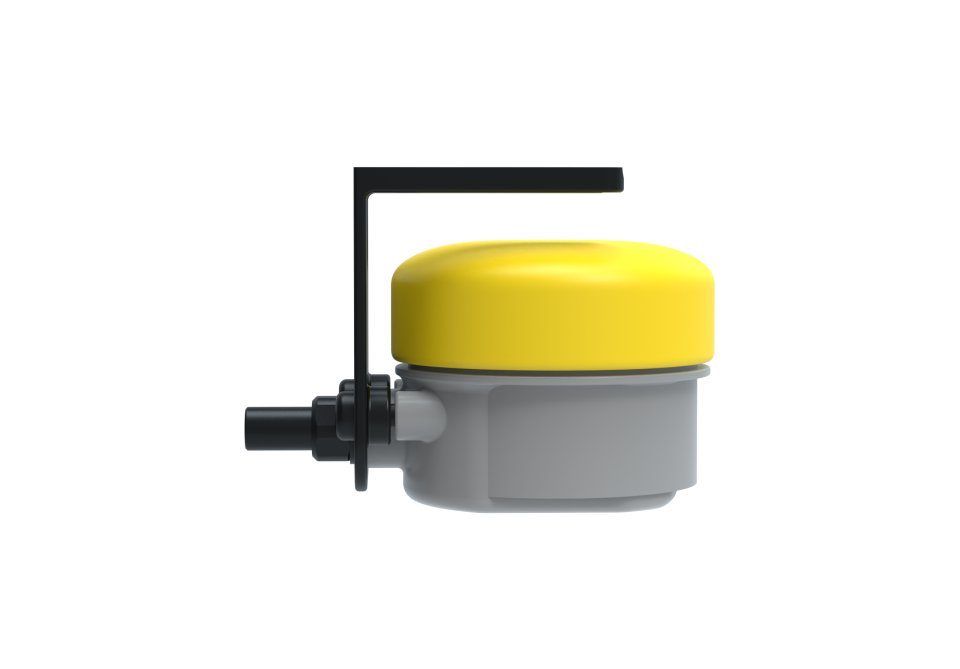

• 1 x Swappable mounting bracket
• 1 x Two-end connector
• 8 x M3 x 8 screws
• 8 x M3 x 16 screws

Specification

• Dimensions: Upper cover: 81.3 × 30 mm, Housing: 79.3 × 55.9 mm
• Weight: 286 ± 5 g
• Blind spot radius: <20 cm
• Measurement accuracy: ±25 mm
• Resolution: 1 mm
• Launch angle: 13° ± 2°, 26° between axis-1 and axis-2
• Power supply: 10.8 VDC - 26.4 VDC (measurement range will vary depending on voltage)
• Storage temperature: -20 ℃ - 60 ℃ (non-frozen environment)
• Probe positioning: Fixed
• Water ingress protection: IP68
• Maximum dive depth: 150 m
