Chasing Control Console

About this product

Due to shipping restrictions, we are not currently able to send this item to locations outside of the UK. Specialist shipping is also required so additional postage costs will apply. We will be in contact once you have placed your order to confirm these costs with you, or,  if you wish to discuss this before your order, please contact us on 01803 865913 or by email at customer.services@nhbs.com.

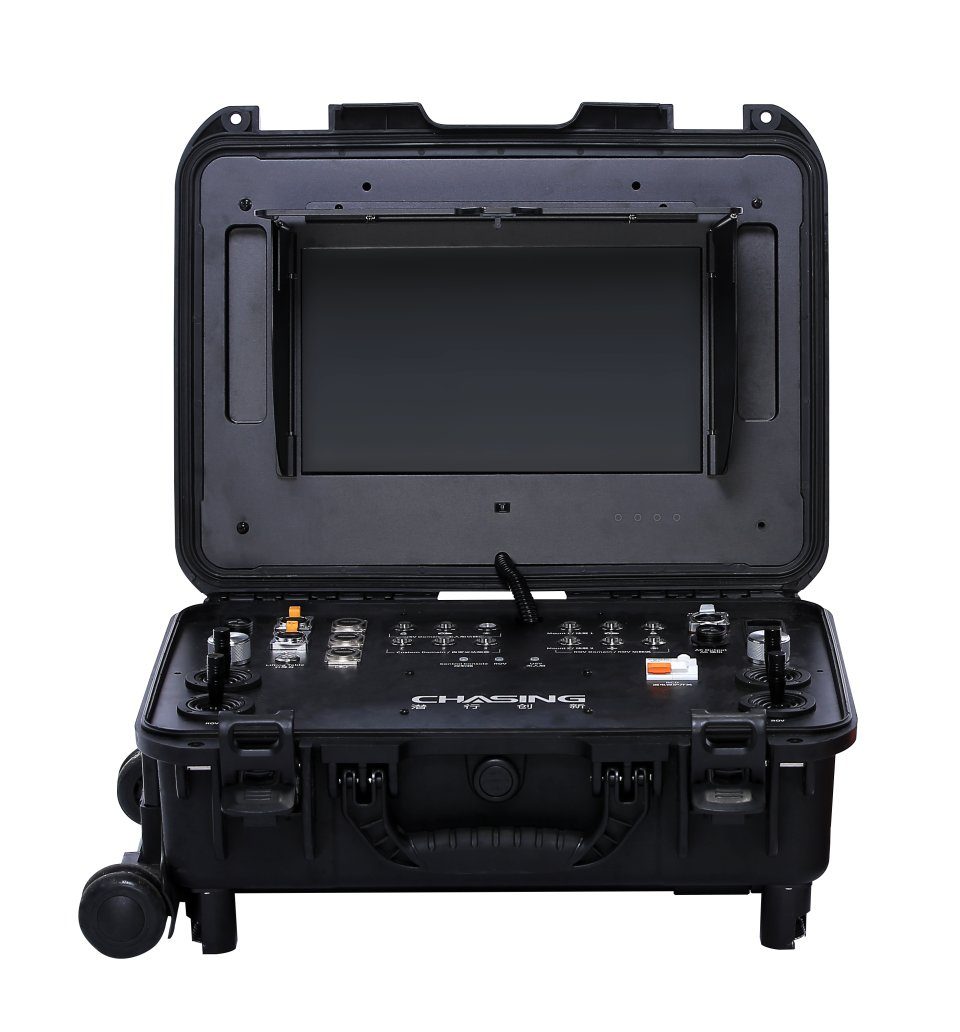

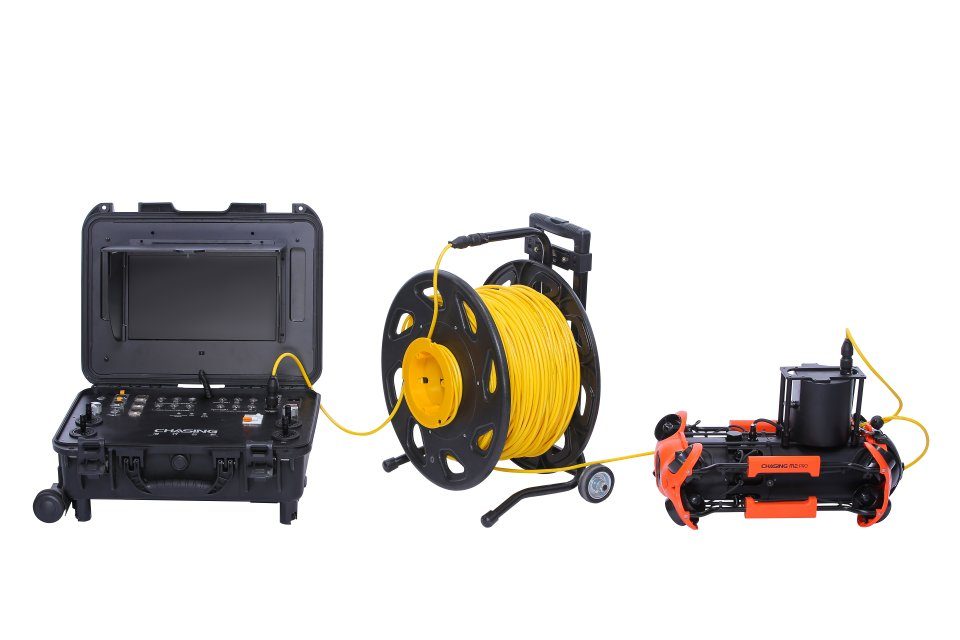

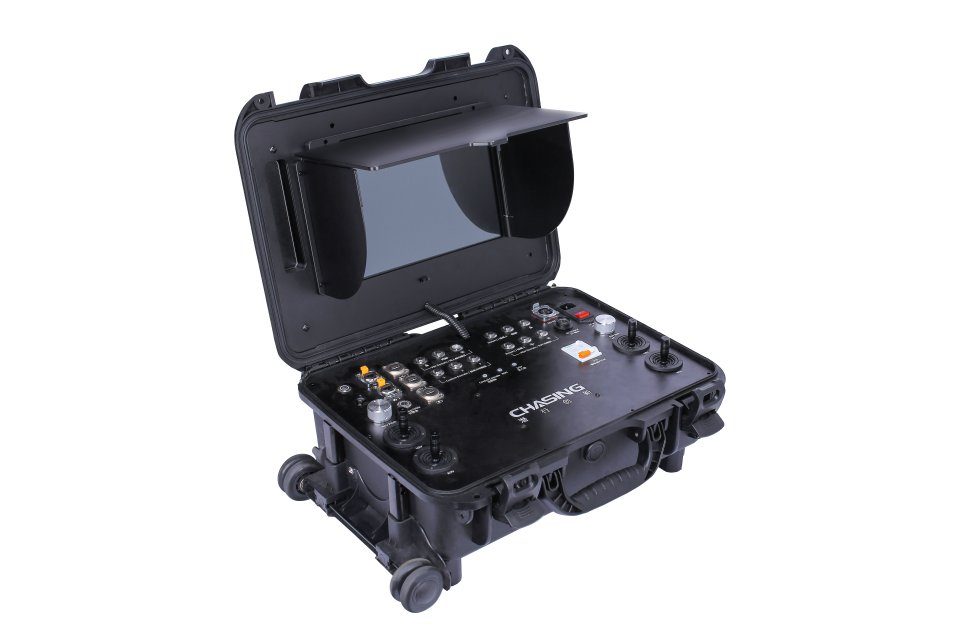

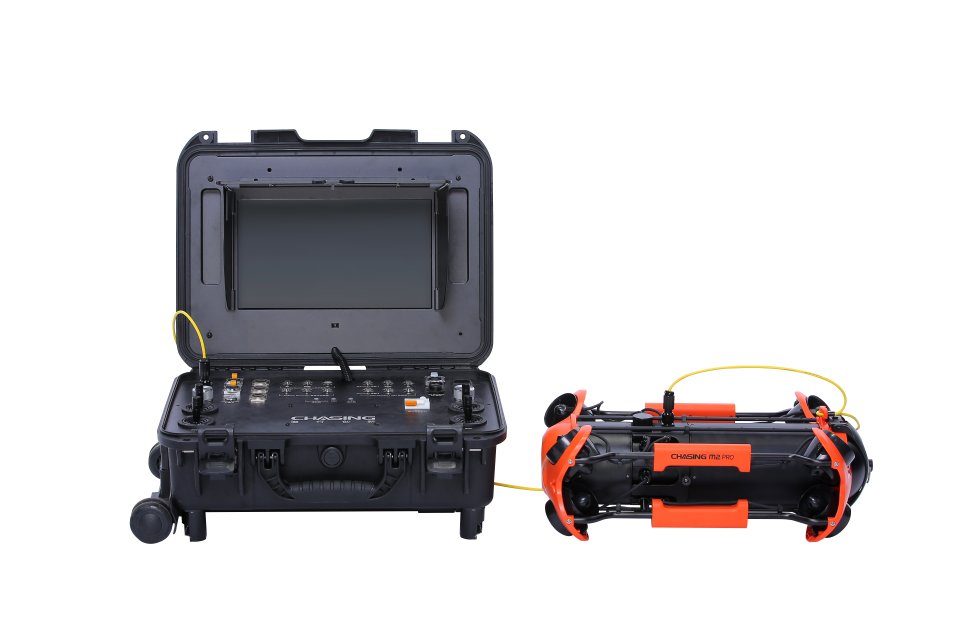

The CHASING Control Console is a professional control platform designed for industrial users, compatible with the M2S, M2 PRO, and M2 PRO MAX. The built-in 13.3-inch 1080P display delivers real-time ROV underwater images, which thanks to the light shield are clearly visible in even direct sunlight.

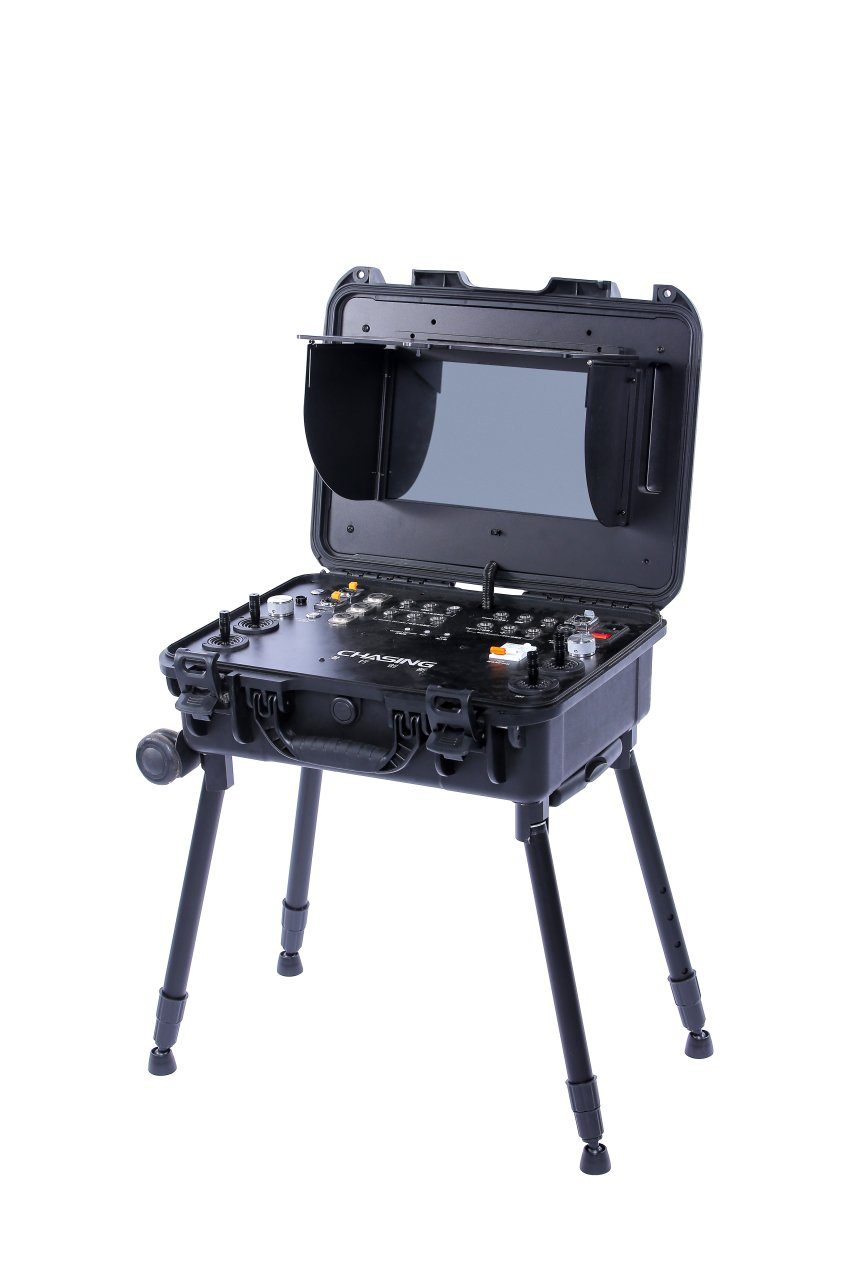

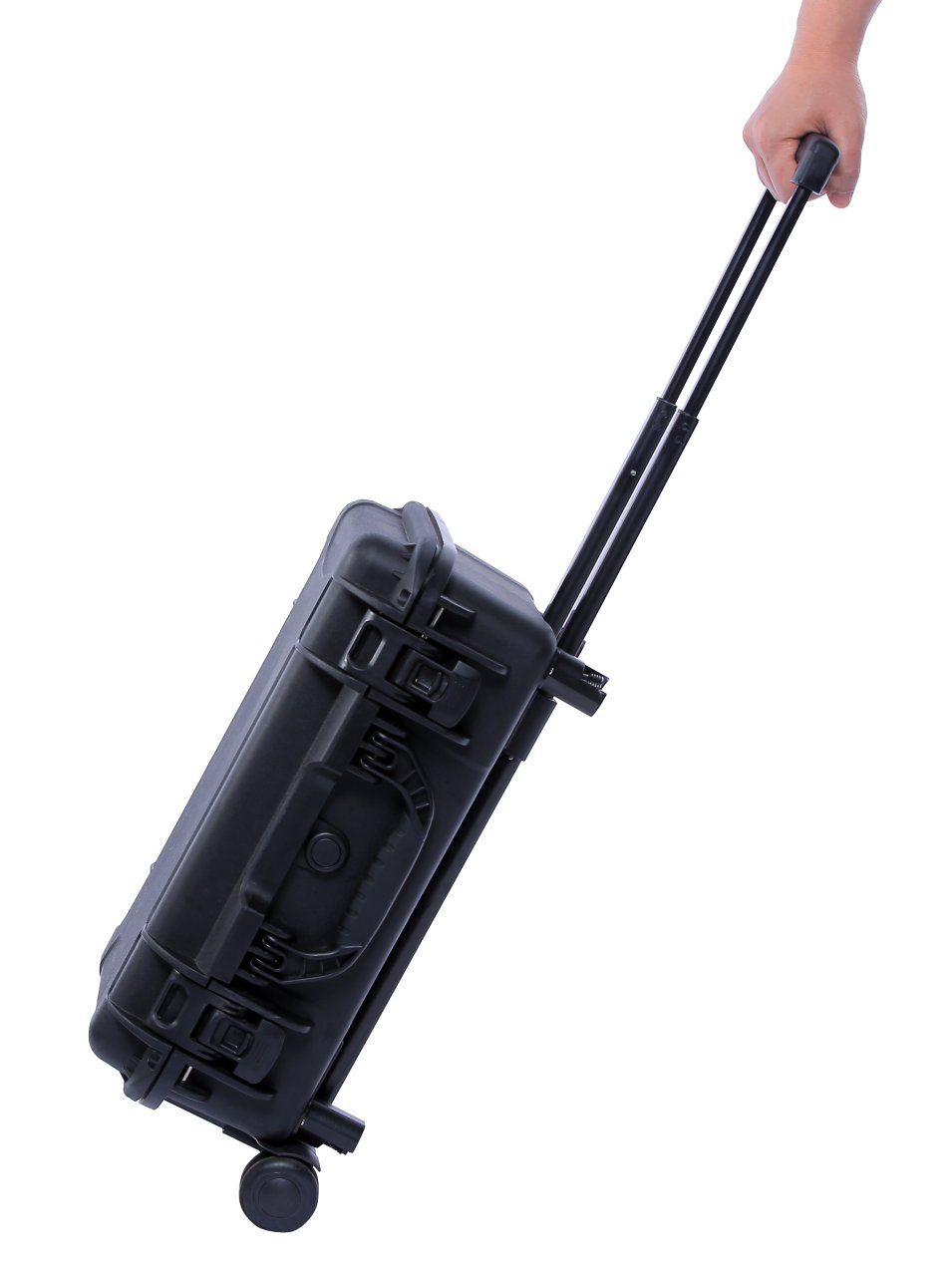

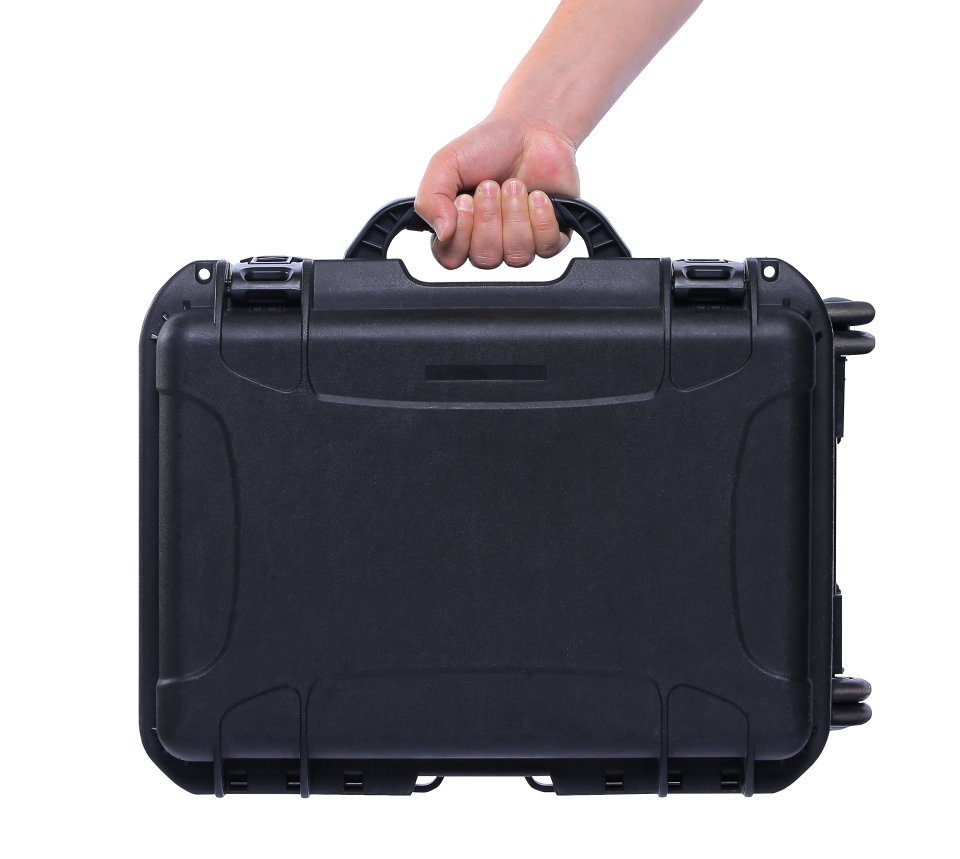

The control platform features several ergonomically designed switches, buttons, and interfaces, making it easy to control the ROV, as well as the USBL, manipulator arm, image sonar, external lights, and other professional accessories. The four support legs can be adjusted in height separately to adapt to various terrains. Housed in a durable aluminum alloy shell with rollers at the bottom, the console can be easily stored and transported like a suitcase.

Featuring a 226.8 Wh battery with a maximum runtime of ≥8h this control console is built for long deployments. For more intensive surveys, this console can be connected to mains power using the AC input and output power ports for an unlimited console runtime.

Please click HERE for the manual.

Warranty: 2 years

Contents

• Controle Console x 1
• 3A charger x 1
• ROV cable x 1
• Bracket protections x 6
• External GPS x 1

Specification

General

• Dimensions: 484 x 375 x 178 mm
• Weight: 11 kg
• Display: 13.3 inches, 1000cd/m², 1920×1080
• Interface: RJ45 × 2 , USB 2.0 Host × 2 , QC 3.0 USB × 1
• Operating Temperature Range: -10℃ - 45℃

Power

• AC Input: 200 V ~ 240 V
• Ac Output: 220V
• Battery: 226.8 Wh
• Charging Time: ≈4.5h
